Oxygen Solutions

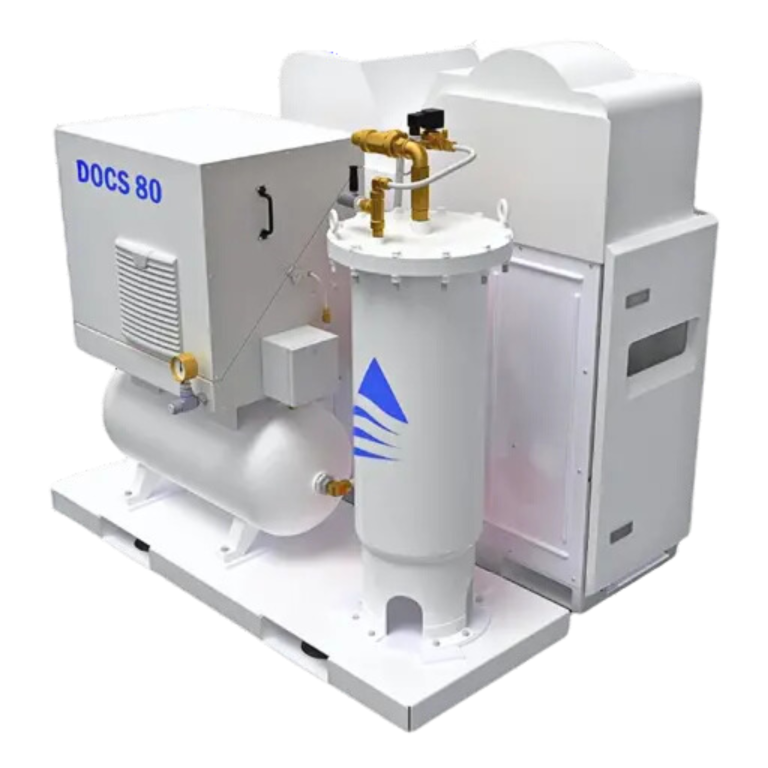

DOCS 80
Compact and reliable, the DOCS-80 delivers 80 liters of oxygen per minute at 93% purity. Ideal for smaller hospitals and healthcare facilities, it also suits other industries needing a dependable oxygen supply. Its modular design and low maintenance make it a practical choice for diverse operational settings.
| Specification | Details |
|---|---|
|
Oxygen Flow Rate |
80 liters per minute (lpm) |
|
Operating Pressure |
10–100 psig |
|
Power Consumption |
3.1–3.7 kW |
|
Operating Temperature |
0°F to 120°F (-18°C to 49°C) |

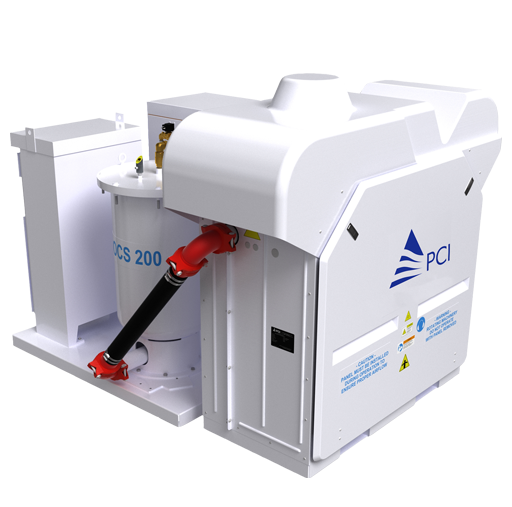

DOCS 200
A mid-range oxygen generator producing 200 liters per minute, the DOCS-200 supports medium-sized hospitals and clinics, as well as various other sectors requiring consistent oxygen flow. With user-friendly servicing and efficient operation, this model is built to meet the needs of healthcare and beyond.
| Specification | Details |
|---|---|
|
Oxygen Flow Rate |
200 liters per minute (lpm) |
|
Oxygen Purity |
93% ± 3% |
|
Operating Pressure |
20–100 psig |
|
Power Consumption |
7.5–8.2 kW |
|
Operating Temperature |
0°F to 120°F (-18°C to 49°C) |
DOCS 500
The DOCS-500 is designed for large-scale oxygen demands, providing 500 liters per minute at high efficiency. Perfect for larger hospitals and industrial applications alike, it ensures a reliable oxygen supply while being easy to install and maintain. A top choice for high-output oxygen generation in healthcare or other industries.
| Specification | Details |
|---|---|
|
Oxygen Flow Rate |
500 liters per minute (lpm) |
|
Oxygen Purity |
93% ± 3% |
|
Operating Pressure |
20–100 psig |
|
Power Consumption |
17.1–18.9 kW |
|
Operating Temperature |
0°F to 120°F (-18°C to 49°C) |

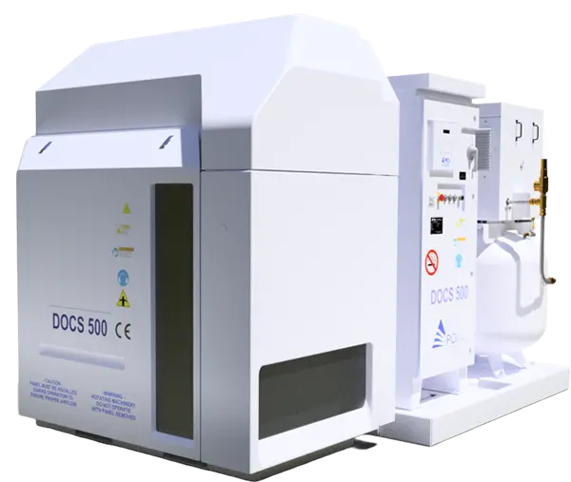

DOCS 500 CE
The DOCS-500 CE is designed for large-scale oxygen demands, providing 500 liters per minute at high efficiency. Perfect for larger hospitals and industrial applications alike, it ensures a reliable oxygen supply while being easy to install and maintain. A top choice for high-output oxygen generation in healthcare or other industries.
| Specification | Details |
|---|---|
|
Oxygen Flow Rate |
500 liters per minute (lpm) |
|
Oxygen Purity |
93% ± 3% |
|
Operating Pressure |
20 – 100 psig
|
|
Power Consumption |
17.1–18.9 kW |
|
Operating Temperature |
0°F to 120°F (-18°C to 49°C) |

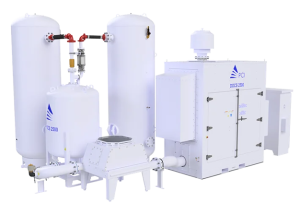

DOCS 2500
Industrial Configuration : Free-standing, modularized components with pre-fabricated electrical & mechanical module interconnects for rapid, low-cost installation
| Specification | Details |
|---|---|
|
Oxygen Flow Rate |
2400 liters per minute (lpm) |
|
Oxygen Purity |
90%-96% |
|
Operating Pressure |
6 – 10 psig |
|
Power Consumption |
61-63 kW |
|
Operating Temperature |
0°F to 120°F (-18°C to 49°C) |
DOCS 5000
Deployable Oxygen Concentration System (DOCS) 5000 oxygen generator comes as single or dual version and can deliver up to 20 tons per day of oxygen.
| Specification | Details |
|---|---|
|
Oxygen Flow Rate |
5000 liters per minute (lpm) |
|
Oxygen Purity |
93% +/- 3% |
|
Operating Pressure |
6 – 10 psig |
|
Power Consumption |
135 – 170 kW |
|
Operating Temperature |
0°F to 120°F (-18°C to 49°C) |

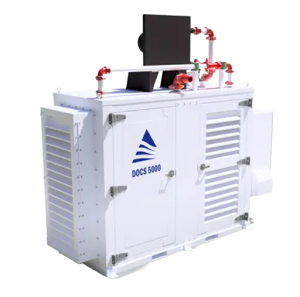

DOCS 5000 Booster
The DOCS 5000 Booster is an external oxygen booster unit manufactured by PCI Gases designed to increase the oxygen output pressure of the standard DOCS 5000 oxygen generator system.
| Specification | Details |
|---|---|
|
Oxygen Flow Rate |
5000 liters per minute (lpm) |
|
Oxygen Purity |
93% +/- 3% |
|
Operating Pressure |
20 – 100 psig |
|
Power Consumption |
20 – 28 kW |
|
Operating Temperature |
0°F to 120°F (-18°C to 49°C) |

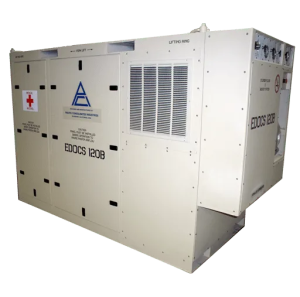

EDOCS 120B
Expeditionary Deployable Oxygen Concentration System (EDOCS) 120B currently provides medical oxygen to Emergency Responders, Disaster Preparedness, the United States Air Force, Army, Navy, USMC, Allied Military Forces
| Specification | Details |
|---|---|
|
Oxygen Flow Rate |
5000 liters per minute (lpm) |
|
Oxygen Purity |
93% +/- 3% |
|
Operating Pressure |
20 – 100 psig |
|
Power Consumption |
20 – 28 kW |
|
Operating Temperature |
0°F to 120°F (-18°C to 49°C) |

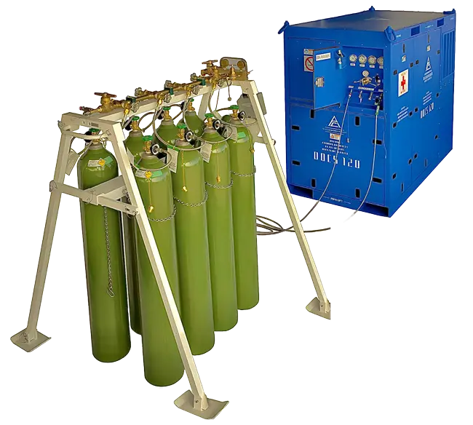

Oxygen Storage & Distribution
Generator Pasifik offers the complete package when it comes to oxygen generation, storage, and distribution. Our oxygen solutions can help you become completely independent from the chores and costs of a cylinder re-supply chain or you can use them as a back-up system for emergencies.

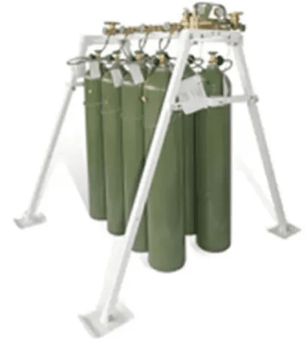

Hospital Oxygen Backup Supply
HOBS is a four-legged stand assembly with a manifold unit for grouping up to eight “H” oxygen cylinders. The “H” cylinders can be refilled by the EDOCS 120B or DOCS 66 with booster. The HOBS primary purpose is to provide a back-up oxygen source in the event of a power/equipment failure or if peak loads exceed 120 liters per minute. The HOBS is an entirely passive system with no moving parts or power requirements. There is a single discharge port for delivery of low pressure oxygen to the hospital supply line. At a flow rate of 120 lpm, the HOBS will supply 480 minutes or 8 hours of back-up oxygen.

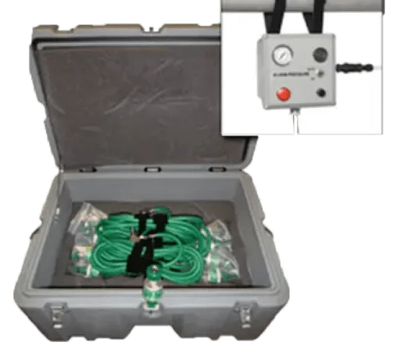

CODS (Commercial Oxygen Distribution System)
PCI’s oxygen delivery system designed for 10 patients using a modular approach for scaling to MTP bed capacities.

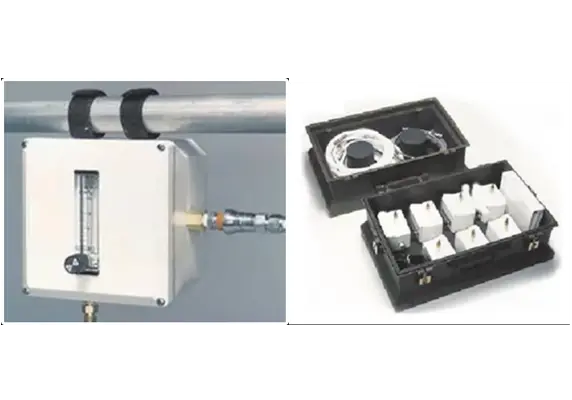

PODS (Patient Oxygen Distribution Systems)
A system designed for 6 patients; flow regulators to mount at patients bedside and multiple hoses with quick disconnect fittings to provide the distribution of the oxygen at a regulated pressure and flow.

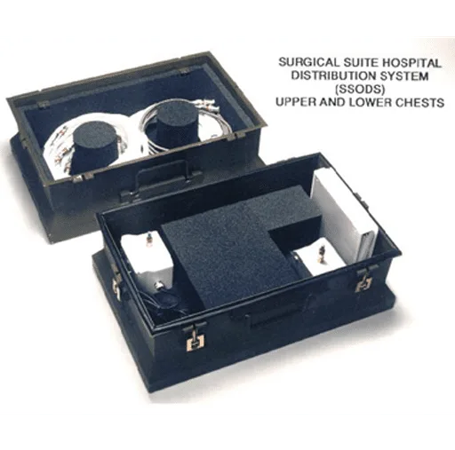

SSODS (Surgical suite Oxygen Distribution System)
Provides one each high-flow oxygen to the surgical suite for operating equipment such as ventilators, respirators and anesthesia machines.
